Interlocking Pass through Cabinet

Designed for sterile and non-sterile cleanrooms, Shield USP 797 and USP 800 compliant interlocking pass through cabinets give pharmacists and clinicians a less expensive and more durable alternative to similar stainless steel pass through cabinets.

Shield's cleanroom interlocking pass through cabinets offer seamless, non-porous, and bleach cleanable construction with easy accessibility for maintenance.

This innovative pass through is ideal for operating rooms (ORs), laboratories, pharmacies, and other areas to avoid contamination between cleanroom and non-cleanroom environments.

Featured in Healthcare Facility Management HFM Magazine, a publication of the American Society for Healthcare Engineering (ASHE)

REQUEST A QUOTE

Customers also bought:

Acrylic Solid Surface Casework and Countertops

Specialty Medical Storage Cabinets

Shield Casework Healthcare acrylic solid surface wall-countertop pass-through cabinet is USP 797 and 800 compliant and shown in oncology compounding pharmacy

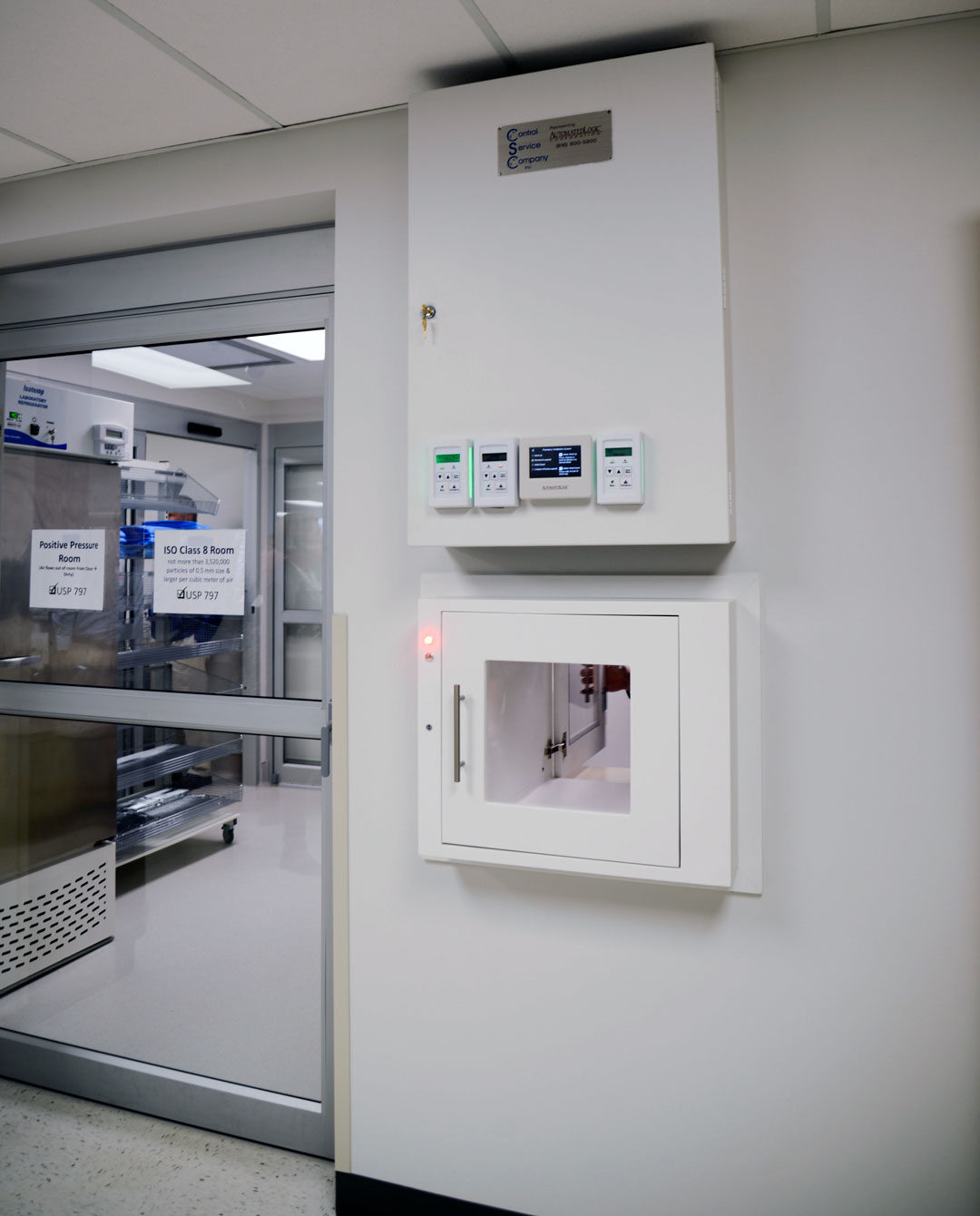

Shield Casework Healthcare acrylic solid surface floor-cart pass-through cabinet is USP 797 and 800 compliant and shown in pharmacy from Ante room

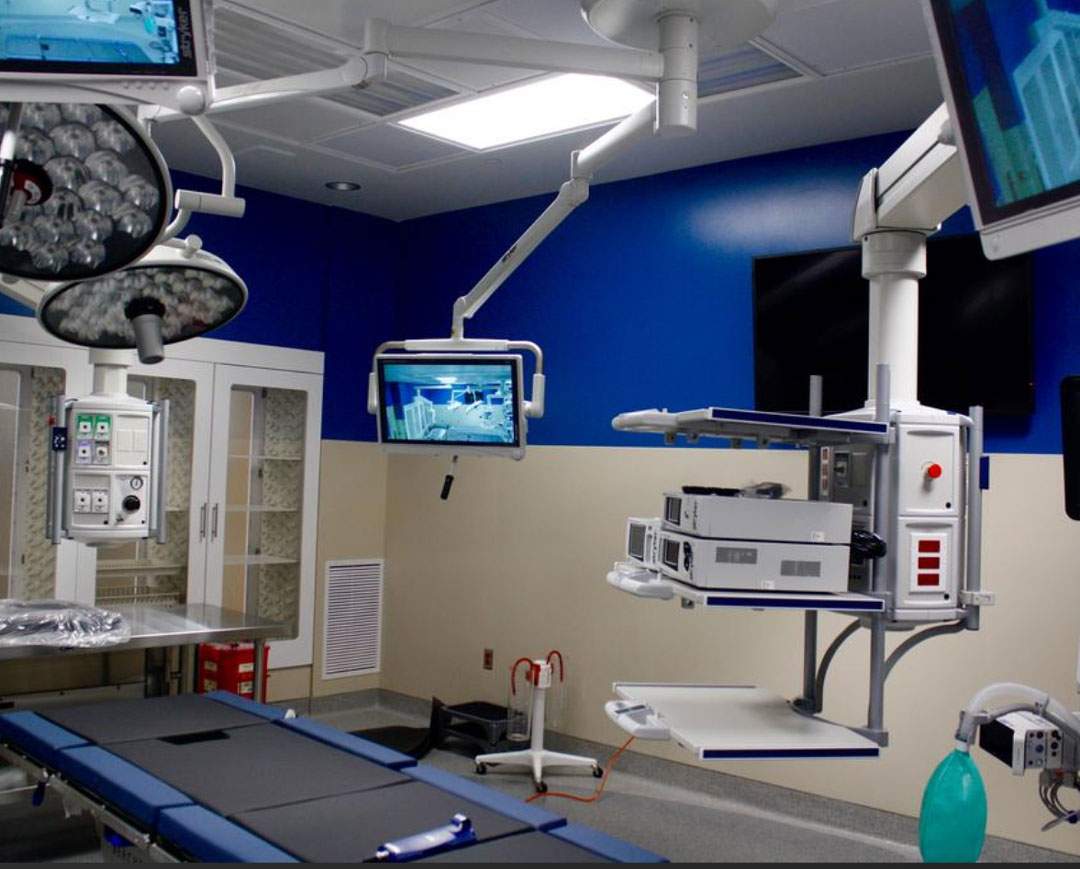

Shield Casework Healthcare acrylic solid surface full-height pass-through cabinets shown in operating room

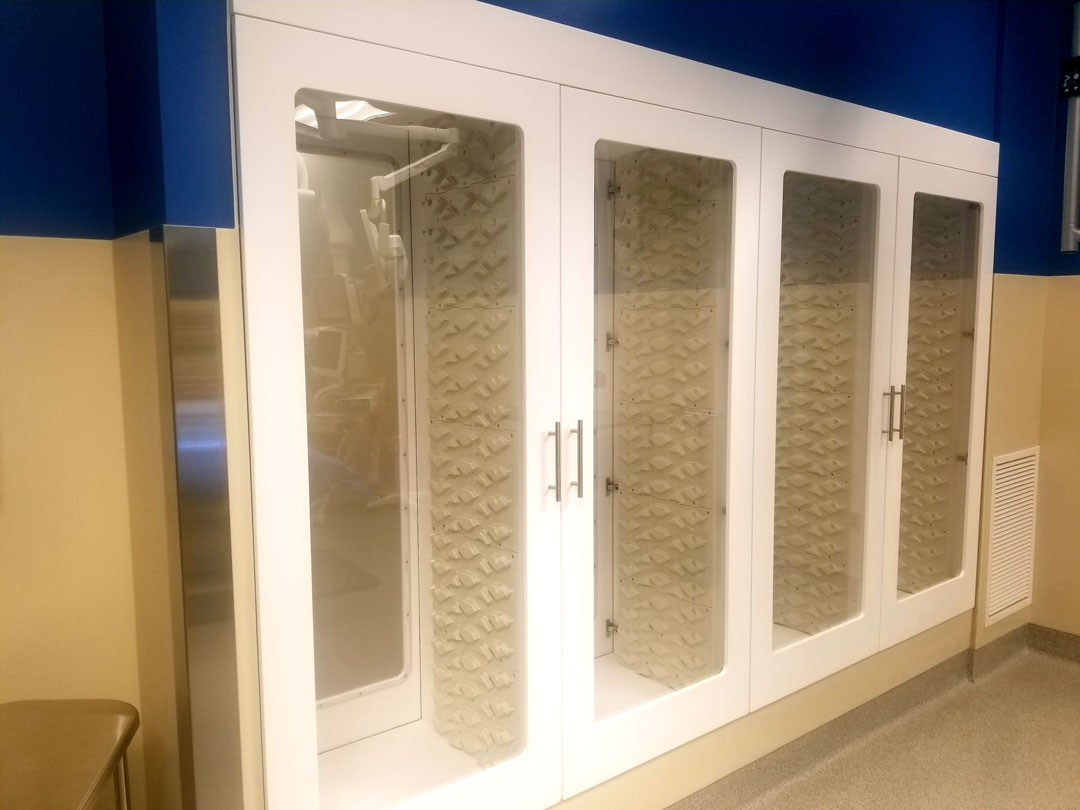

Shield Casework acrylic solid surface full height pass through cabinet with high density storage in operating room in white

Key Benefits

USP 797 and USP 800 compliant where applicable for TJC reviews, as well as staff and patient safety
Shield’s signature acrylic solid surface construction with patented embedded stainless-to-stainless steel connections ensures lasting durability and cleanability
Shatterproof Lexan doors enclosed with gasket seal to prevent leakage and cross contamination
Automated magnetic interlocking mechanism maintains room pressure by preventing both doors from being opened simultaneously
Workflow indicator light helps save clinicians time and steps by displaying open or close status, as well as when medication is ready for removal
Protected by Shield's industry-leading limited lifetime warranty

STANDARD MODELS

Statement of line for Shield Casework’s USP 797 and USP 800 compliant acrylic solid surface interlocking pass-through cabinets includes wall or countertop, floor or cart, and full-height models

WALL/COUNTER	(W x D x H)
PTWA15	15" x 15" x 15"
PTWA18	18" x 18" x 18"
PTWA2418	24" x 18" x 24"
PTWA24	24" x 24" x 24"
PTWA30	30" x 30" x 30"
PTWA36	36" x 36" x 36"
PTWA00	CUSTOM SIZE
Cell	Cell

FLOOR/CART	(W x D x H)
PTCA24	24" x 30" x 48"
PTCA30	30" x 30" x 48"
PTCA36	36" x 30" x 48"
PTCA42	42" x 30" x 48"
PTCA48	48" x 30" x 48"
PTCA54	54" x 30" x 48"
PTCA60	60" x 30" x 48"
PTCA00	CUSTOM SIZE

FULL-HEIGHT	(W x D x H)
PTFH24	24" x 30" x 72"
PTFH30	30" x 30" x 72"
PTFH36	36" x 30" x 72"
PTFH42	42" x 30" x 72"
PTFH48	48" x 30" x 72"
PTFH54	54" x 30" x 72"
PTFH60	60" x 30" x 72"
PTFH00	CUSTOM SIZE

NOTE: All dimensions above are OD. To determine interior clear dimensions for wall model, subtract 5" from width, 1.5" from depth, and 3.5" from height. Contact Shield Casework for additional details on Cart and Full-Height model interior clear dimensions.

Product Includes

LED workflow indicator light (green/red)
Electronic magnetic interlock with door gasket
Lexan shatterproof doors
Shield standard wire pull
120V power supply and junction box for electrical connection
Side wall and top access panels for easy installation and maintenance

Additional Options

HC03 - LED capacity indicator with infared sensor
HC04 - High-density storage components (full-height only)
HC05 - Integrated HEPA-filtration system
Build your own size and configuration (talk to a specialist)

How to specify

Select model
Select size
Select color finish (see reference page)
Select cabinet pull (see reference page)
Note any additional options
