SPECIALTY Medical Storage CABINETS

Shield's specialty medical storage cabinets go where other casework simply can't - critical cleanroom and procedure areas.

From endoscopy to PPE storage, these workhorse cabinets combine the fundamental durability and cleanliness of our 100% acrylic solid surface casework line with specialized storage and functionality for specific, clinical workflows.

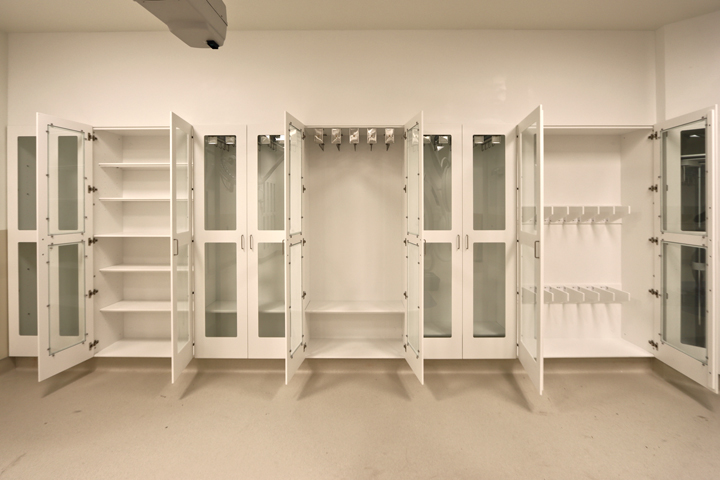

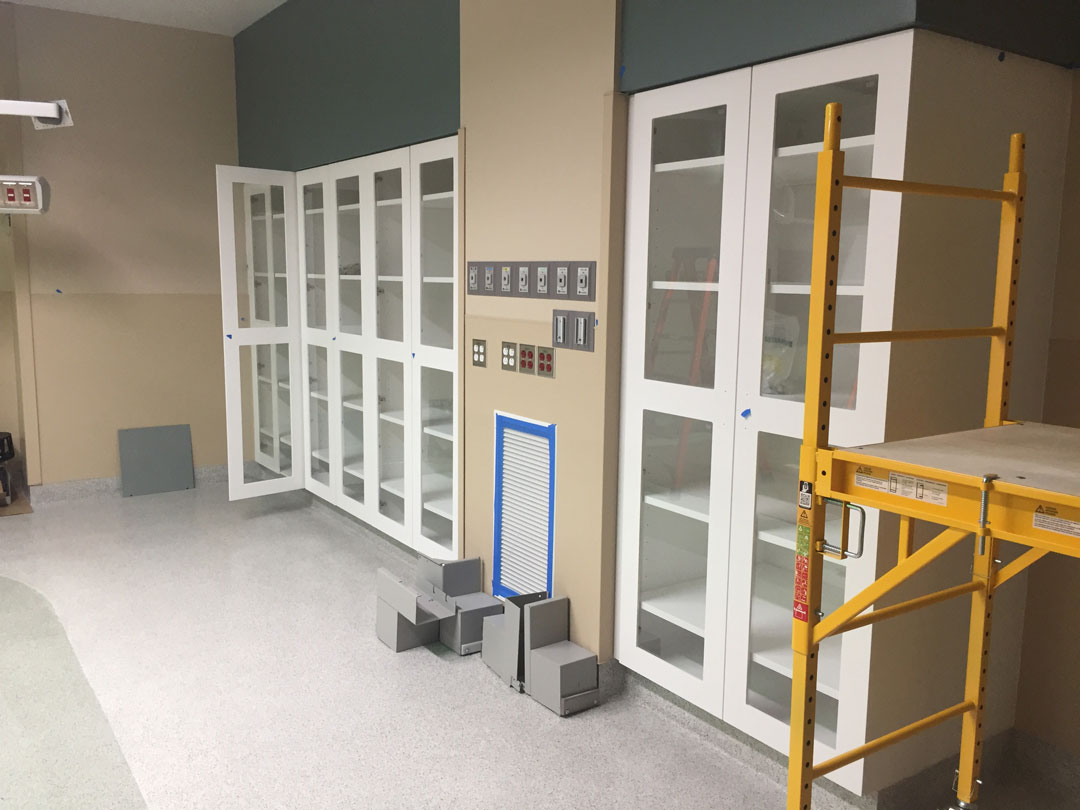

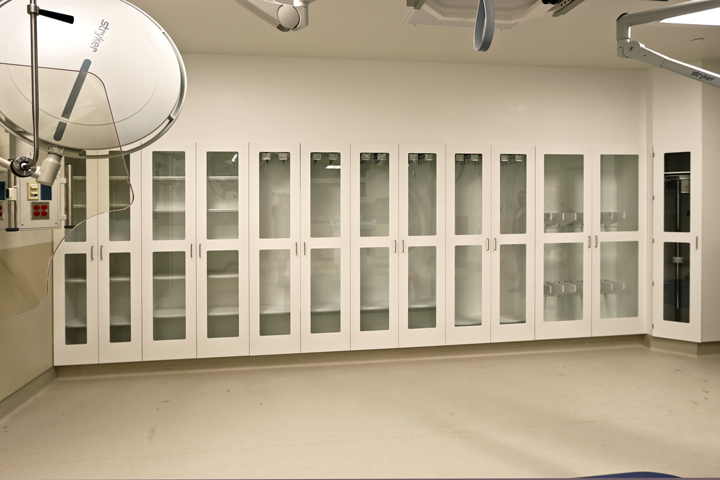

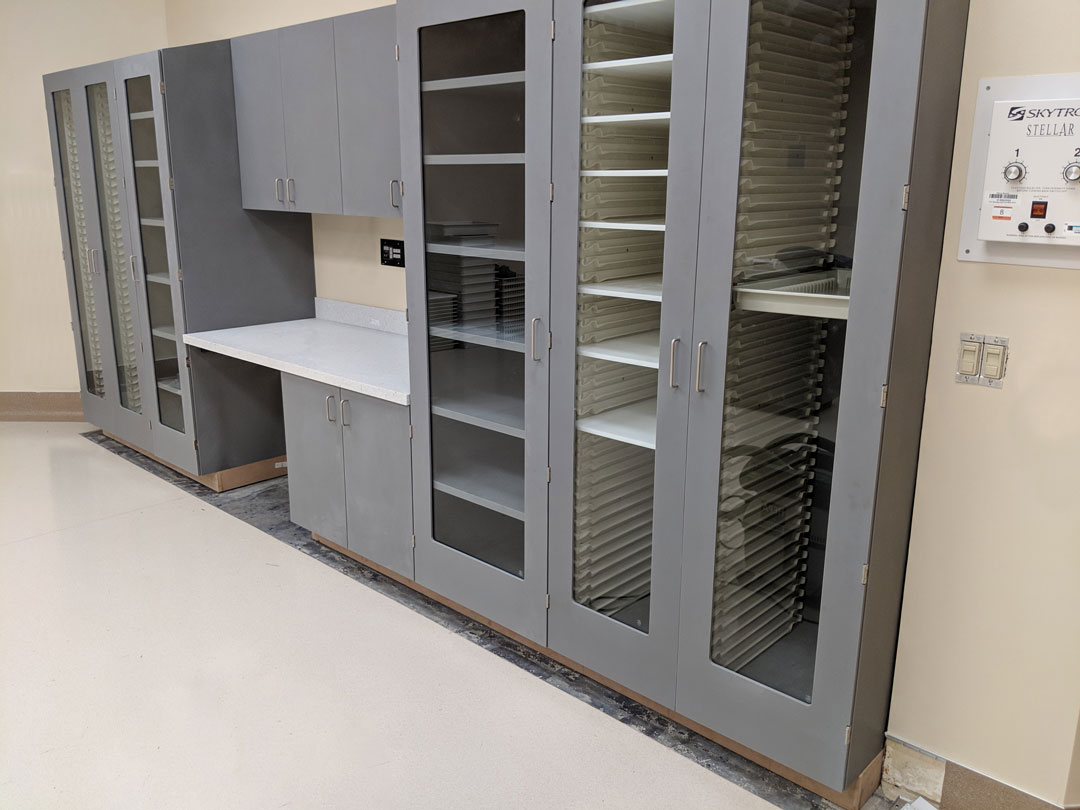

Customize your next operating room, cath lab, surgical pathology lab, pharmacy, imaging suite, or any other critically clean space with Shield's microbial-resistant alternative to stainless steel cabinets.

REQUEST A QUOTE



"Cath lab storage can be difficult to get right. It needs to be durable and easily cleaned, while still being customizable and clinically functional. There's no other product that meets those demands like Shield's solid surface solution. Shield understands the needs of healthcare storage, and worked hard to give us a product that outperforms anything on the market."

- Nic Riesenberg, CHFM, CHC, LEED
Vice President of Facilities and Support Services | North Kansas City Hospital

CABINET MODELS

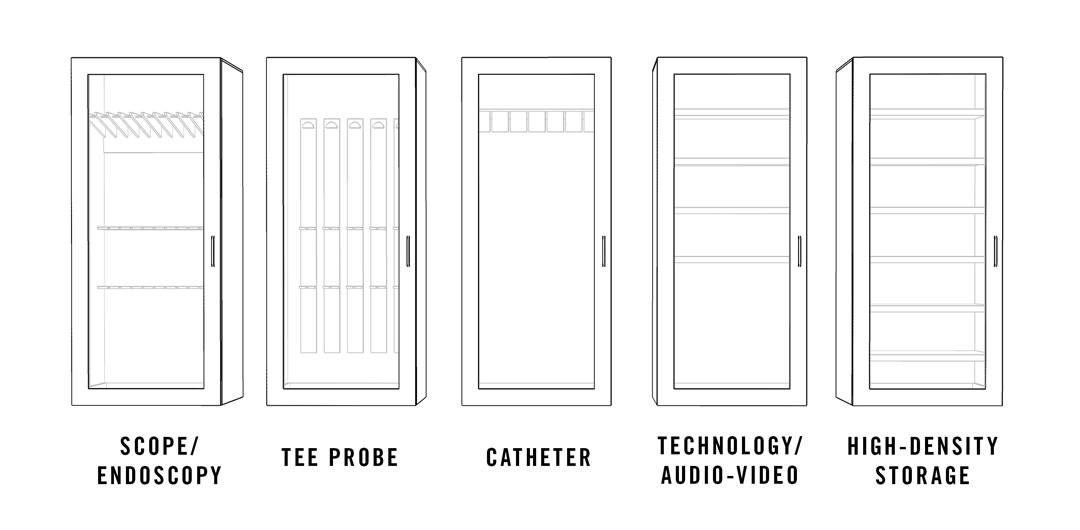

Statement of line for Shield Casework’s modular acrylic solid surface specialty storage cabinets includes scope/endoscopy, tee probe, catheter, technology/audio-video, and high-density storage models

SCOPE/ENDOSCOPY (SCEN)

24" - 36" W x 92" H x 28" D

SCEN24R - RHR Door

SCEN24L - LHR Door

SCEN30 - Double Door

SCEN36 - Double Door

TEE PROBE (SCTP)

24" - 36" W x 92" H x 28" D

SCTP24R - RHR Door

SCTP24L - LHR Door

SCTP30 - Double Door

SCTP36 - Double Door

CATHETER (SCCH)

24" - 36" W x 80" H x 28" D

SCCH24R - RHR Door

SCCH24L - LHR Door

SCCH30 - Double Door

SCCH36 - Double Door

TECHNOLOGY/AV (SCAV)

24" - 36" W x 92" H x 28" D

SCAV24R - RHR Door

SCAV24L - LHR Door

SCAV30 - Double Door

SCAV36 - Double Door

HIGH-DENSITY (SCHD)

24" - 36" W x 92" H x 28" D

SCHD24R - RHR Door

SCHD24L - LHR Door

SCHD30 - Double Door

SCHD36 - Double Door

NOTE: RHR is Right Hand Reverse door swing, and LHR is Left Hand Reverse door swing.

Product Includes

  • 4" waterproof toekick substrate base
  • Soft-close drawer glides for interior pull-out shelving
  • 3-knuckle industrial hinges
  • Standard cabinet pulls (qty. varies, see hardware reference page)

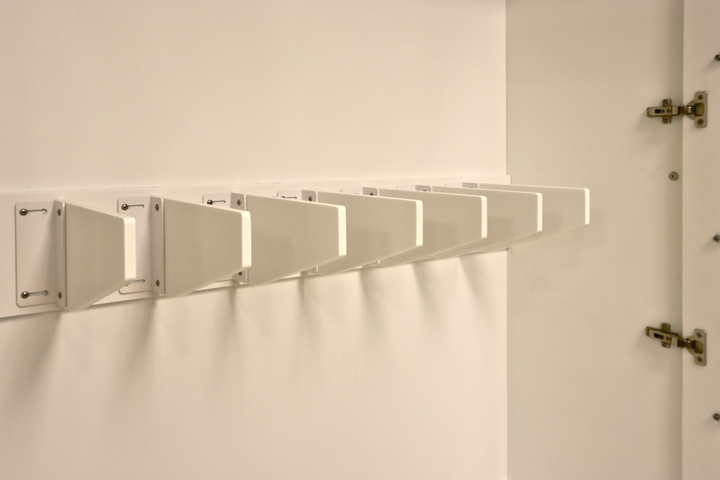

ENDOSCOPY: Includes ventilation on top and bottom of cabinet, scope padding, removable drip tray, adjustable scope cues, and cord management.

TEE PROBE: Includes ventilation on top and bottom of cabinet, and removable drip tray.

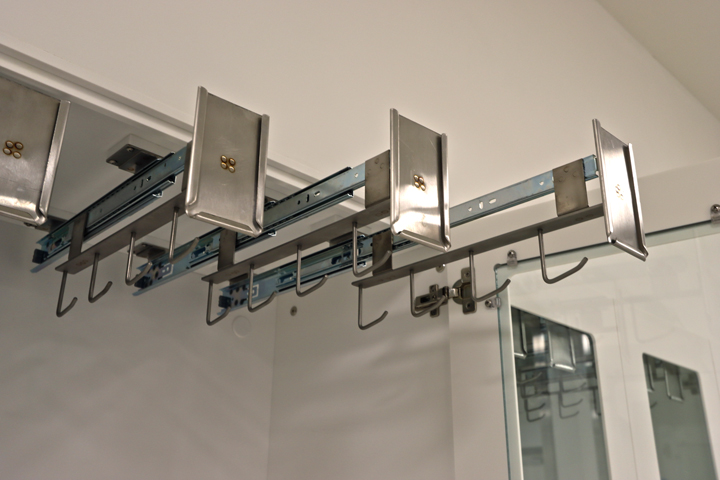

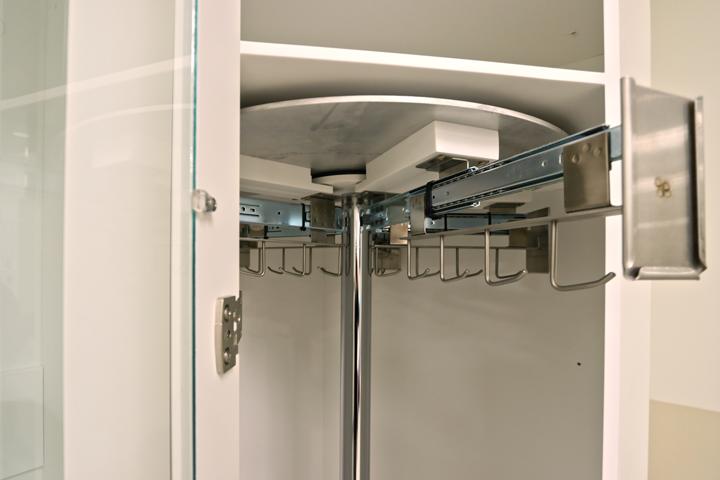

CATHETER: Includes upper storage shelf with option of 3, 6, or 8 cues.

TECHNOLOGY/AV: Includes 2 fixed full-depth shelves and 2 pull-out shelves on heavy duty drawer glides; cabinet ventilation and removable access panel.

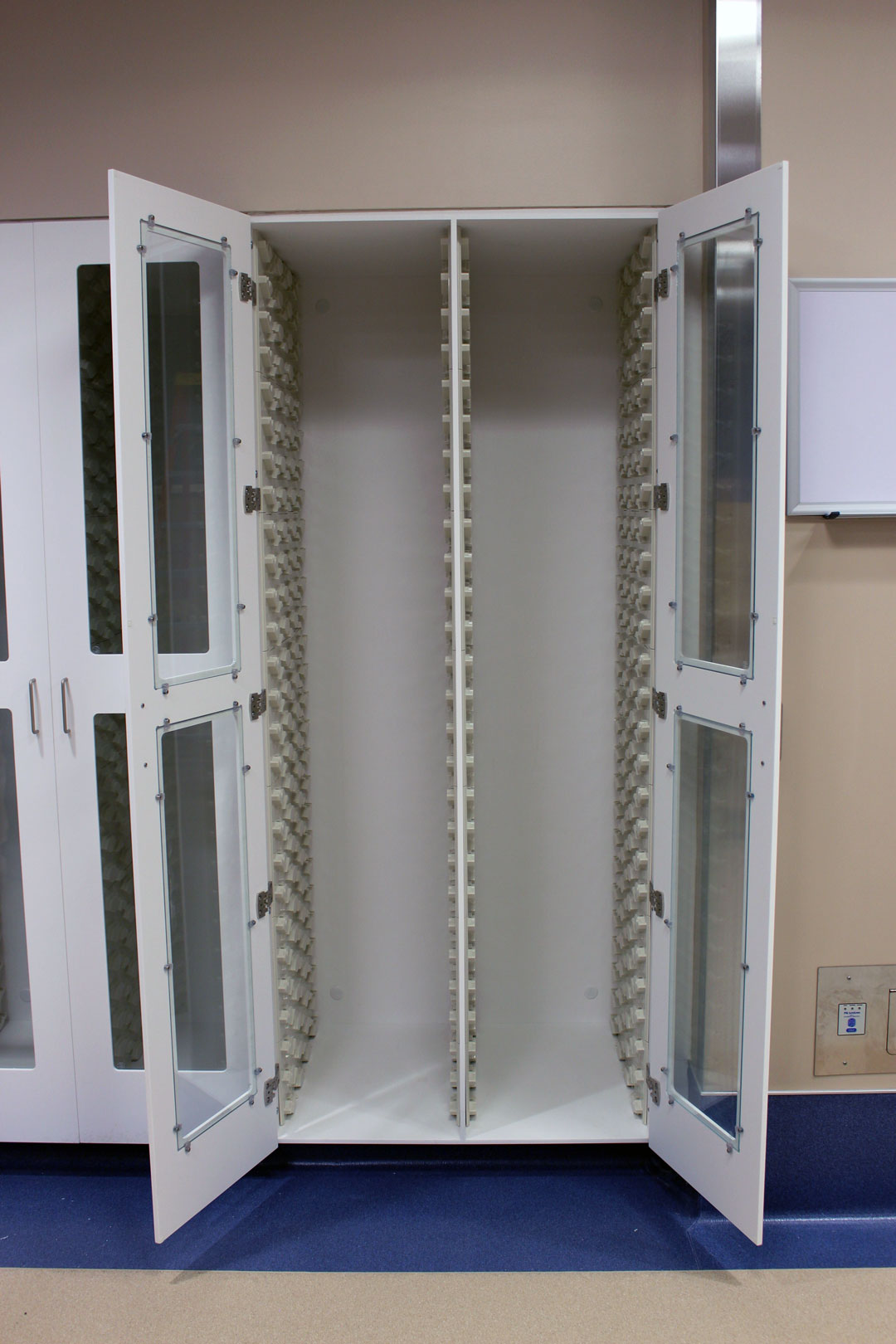

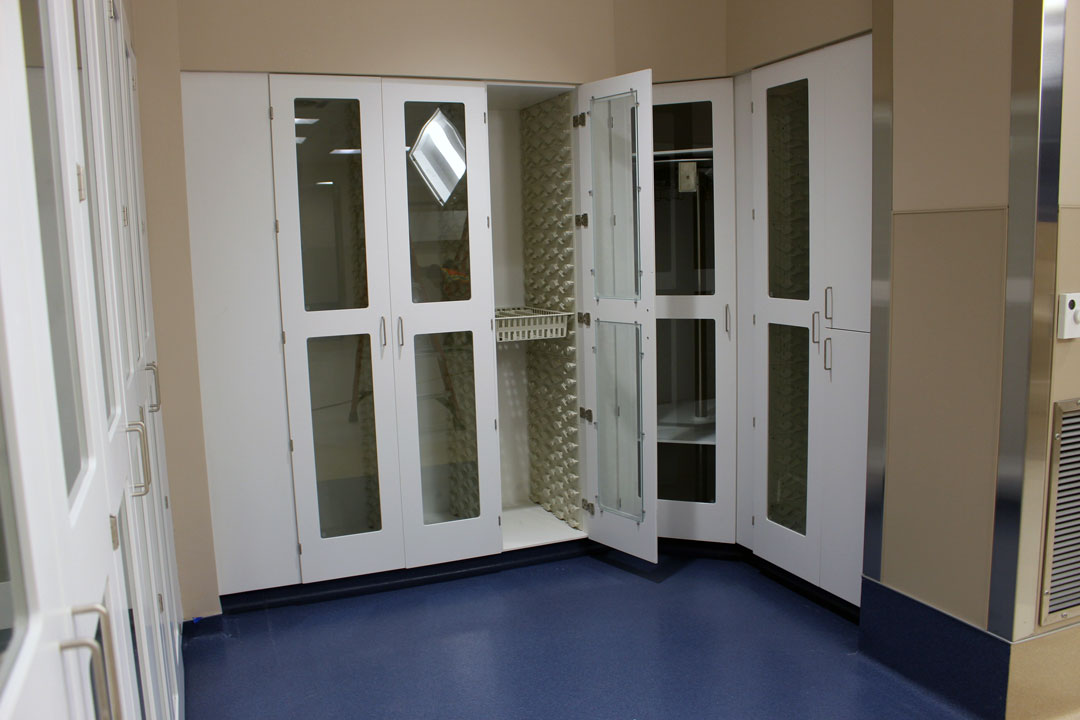

HIGH-DENSITY: Includes high-density flexible storage system to accommodate a variety of layouts and storage requirements.

Additional Options

  • HC01 - Extra shelves
  • HC02 - Routing for cabinet ventilation
  • HC04 - High-density storage components
  • HC05 - HEPA filtration system
  • HC07 - Glass doors
  • HC08 - Undercabinet task lighting
  • HC09 - Sloped tops
  • HC12 - Interior radius coved corner finish
  • Cabinet locks (see Hardware reference page)
  • Build your own size and configuration (talk to a specialist)

STANDARD HINGE

Hinge sample of Shield Casework’s acrylic solid surface casework 3 knuckle industrial standard door hinge hardware option

IN - 3-Knuckle Industrial

Hinge sample of Shield Casework’s acrylic solid surface casework european concealed standard door hinge hardware option

CN - European Concealed

How to specify

  • Select model
  • Select hinge style
  • Select solid surface color finish (see Finishes reference page)
  • Select cabinet pull (see Hardware reference page)
  • Select solid surface countertop finish (sum linear feet of base units)
  • Note any additional options

BROCHURE

Shield Casework manufacturers healthcare products using acrylic solid surface using acrylic solid surface to reduce cost and reduce risk without compromising design

KEY BENEFITS

Rendering of Shield Casework's patented embedded stainless steel insert connection technology for acrylic solid surface

Common failure points in casework and furniture originate around moving parts or at hardware connections.

That's why Shield developed and patented stainless-to-stainless steel metal connections, to provide utmost durability in places most susceptible to failure.

Shield Casework's 100 percent acrylic solid surface cabinet construction sample

100% acrylic solid surface cabinet construction is one of the most cleanable and durable cabinets available, which is commonly used as an alternative to stainless steel.

Because of that, Shield can guarantee your investment with an industry-leading limited lifetime warranty.

Shield Casework precision engineers products for efficient and industry-leading digital manufacturing techniques to help save time and money during production

Precision engineering and digital manufacturing techniques control fabrication of each piece of the product for assembly.

This supports manufacturing consistency, and also allows Shield to offer custom product development at mass scale and at an affordable cost.

Shield Casework’s chemical welds and seamless construction techniques for acrylic solid surface product manufacturing

Water, fluids, and liquid aerosol surface disinfectants are common catalysts for failure over time.

Shield's seamless joint construction helps prevent bacteria from getting trapped in difficult areas to clean, giving patients, caregivers, and facility personnel a more hygienic, bleach cleanable, and microbial-resistant product.
